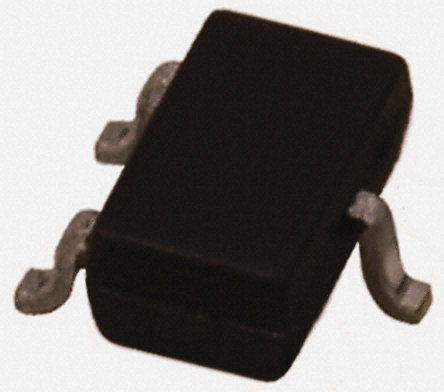

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SC4097T106R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Frequency	250 MHz
Voltage Rating (DC)	32.0 V
Current Rating	500 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	200 mW
Breakdown Voltage (Collector to Emitter)	32 V
Continuous Collector Current	0.5A
hFE Min	180 @10mA, 3V
Input Power (Max)	200 mW
DC Current Gain (hFE)	120
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.8 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
