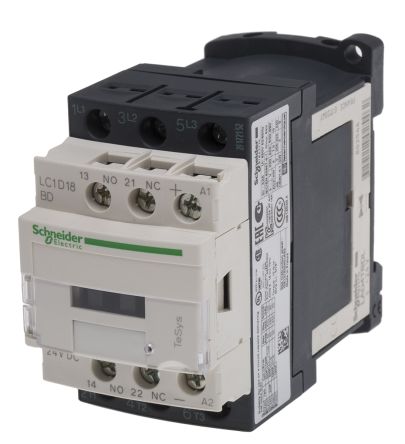

Image is for your reference only,please check specifications for details
- LC1D18BD - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC13719169
-
Category:Industrial Relay
-
Datasheet:Datasheet 3D Model
-
Description:Contactor, Motor Control, 440VAC, 18A, 3Pole, 24VDC Coil, DIN Rail, TeSys D
-
Stock Locations:
-
Availability:70 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 133.39
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General purpose contactor for use with up to 15hp 3-phase motors.
LC1D18BD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Operating Voltage | 600 VAC |
| Current Rating | 18 A |
| Power Rating | 9 kW |
| Contacts Type | 3PST-NO |
| Contact Current Rating | 18 A |
| Coil Voltage | 24 VDC |
| Coil Voltage (DC) | 24 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Voltage Rating | 690VAC, 300VDC |
| Show | |
| Size-Length | 77 mm |
| Size-Width | 45 mm |
| Size-Height | 96 mm |
| Weight | 330 g |
| Operating Temperature | -5℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
