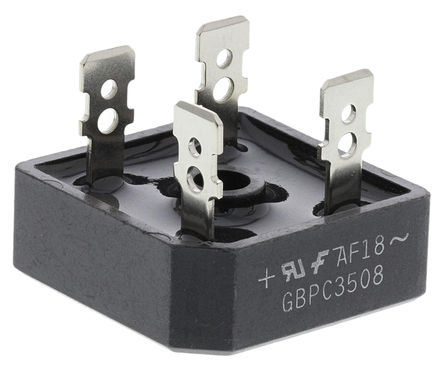

Image is for your reference only,please check specifications for details

GBPC3508 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC59775467
Category:
Bridge Rectifier
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR GBPC3508 Bridge Rectifier Diode, Single, 800V, 35A, Module, 1.1V, 4Pins
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GBPC3508 is a 35A single-phase glass passivated Bridge Rectifier with integrally moulded heatsink. The bridge rectifier feature solderable terminals as per MIL-STD-202, method 208 standard. This bridge rectifier is general usage and suitable for many different applications.
Isolated voltage from case to lead over 2500V
560V Maximum RMS bridge input voltage
83.3W Power dissipation
1.5°C/W Junction to case maximum thermal resistance
UL Certified

Show

GBPC3508 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Square-4
Voltage Rating (DC)	800 V
Current Rating	35.0 A
Capacitance	180 pF
Output Current	≤35.0 A
Number of Positions	4 Position
Forward Voltage	1.1 V
Power Dissipation	83.3 W
Forward Current	35 A
Max Forward Surge Current (Ifsm)	400 A
Maximum Forward Voltage (Max)	1.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	83300 mW
	Show
Size-Length	29 mm
Size-Width	29 mm
Size-Height	11.23 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
