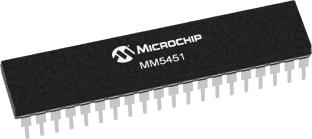

MM5451YN - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC2793600
Category:
LED Driver, LED Display Driver
Package:
PDIP-40
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MM5451YN LED Driver, 4.75V to 11V input, 35Outputs, 500kHz Switch. Frequency, 1.8V/2.7mA out, DIP-40
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MM5451YN is a LED Display Driver is monolithic MOS IC"s fabricated in an N-channel, metal gate process. The technology produces low-threshold, enhancement-mode and ion-implanted depletion-mode devices. A single pin controls the LED display brightness by setting a reference current through a variable resistor connected to the supply.
Continuous brightness control
Serial data input
No load signal requirement
Wide power supply operation
TTL compatibility
34 or 35 Outputs, 15mA capability
Alphanumeric capability

Show

MM5451YN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	PDIP-40
Number of Outputs	35 Output
Output Voltage	1.8 V
Output Current	2.7 mA
Supply Current	10 mA
Number of Positions	40 Position
Power Dissipation	1000 W
Switching Frequency	500 kHz
Input Voltage (Max)	11 V
Input Voltage (Min)	4.75 V
Output Voltage (Max)	1.8 V
Output Current (Max)	25 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 11V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
