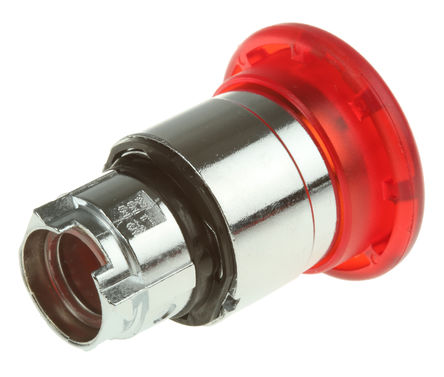

Image is for your reference only,please check specifications for details

ZB4BW643 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC74364793
Category:
Pushbutton Switch, Switch Push button
Datasheet:
Datasheet 3D Model
Description:
Switch part; Pushbtn operator; Rnd; Red 40mm btn; 22mm mnt; Push-Pull; Fit XB4
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZB4BW643 is a 22mm illuminated emergency switching off pushbutton red Round Mushroom Head with chromium plated metal bezel and mechanical latching operator. This ZB4 series commercialized head features push-pull reset and is compatible with integral LED. It is suitable for Harmony XB4 range switches.
300000 Cycles mechanical durability
TH Protective treatment
Class I conforming to IEC 60536 Protection against electric shock
IP66 Conforming to IEC 60529 protection rating
IK05 conforming to IEC 50102 Protection rating

Show

ZB4BW643 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
	Show
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
