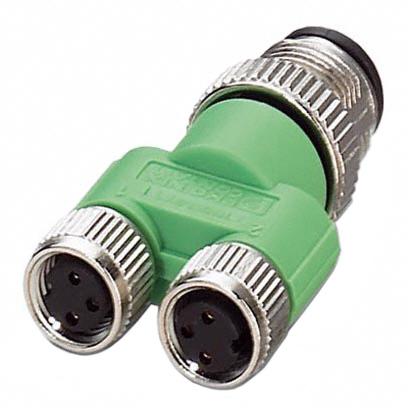

Image is for your reference only,please check specifications for details
- 1683471 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC35945078
-
Category:Connector Accessory
-
Datasheet:Datasheet 3D Model
-
Description:Splitter Connector 90deg (2) Female 4Pole 4Pin - (1) Male 4Pole 4Pin - SAC-3P-M12Y/2XM8FS
-
Stock Locations:
-
Availability:8 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 28.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- CuSn Contact , TPU Insulation , Female Gender, Connector
- Y-distributor/connector M12, with female connector M8, 3-pos. distributor.
1683471 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 4 Pin |
| Number of Contacts | 3 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Current Rating | 4 A |
| Number of Positions | 3 Position |
| Contact Resistance | 5 MΩ |
| Current Rating (Max) | 4 A |
| Voltage Rating (Max) | 60 V |
| Voltage Rating | 60 V |
| Show | |
| Size-Height | 14.8 mm |
| Size-Diameter | 14.8 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Brass |
| Operating Temperature | -25℃ ~ 90℃ |
| Housing Material | Plastic |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694020 |
| ECCN Code | EAR99 |
