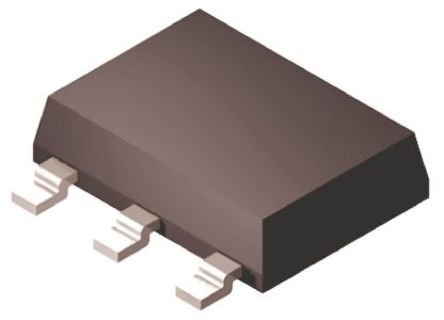

NCP1117ST50T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC396163
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1117ST50T3G Fixed LDO Voltage Regulator, 3.5V to 20V In, 1.07V Dropout, 5V/1A Out, SOT-223-3
Stock Locations:
Availability:
1,678 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1117ST50T3G series are low dropout positive voltage regulators that are capable of providing an output current that is in excess of 1 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy
Output current in excess of 1.0 A
No minimum load requirement for fixed voltage output devices
Reference/output voltage trimmed to ±1.0%
Current limit, safe operating and thermal shutdown protection
Operation to 20V input

Show

NCP1117ST50T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Operating Voltage	0V ~ 20V
Current Rating	-600 A
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	20.0V (max)
Output Voltage	5 V
Output Current	1 A
Supply Current	10 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	10 mA
voltage rating	1.07 V
Input Voltage (Max)	20 V
Input Voltage (Min)	3.5 V
Output Voltage (Min)	5 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±1 %
Input Voltage	20 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.69 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
