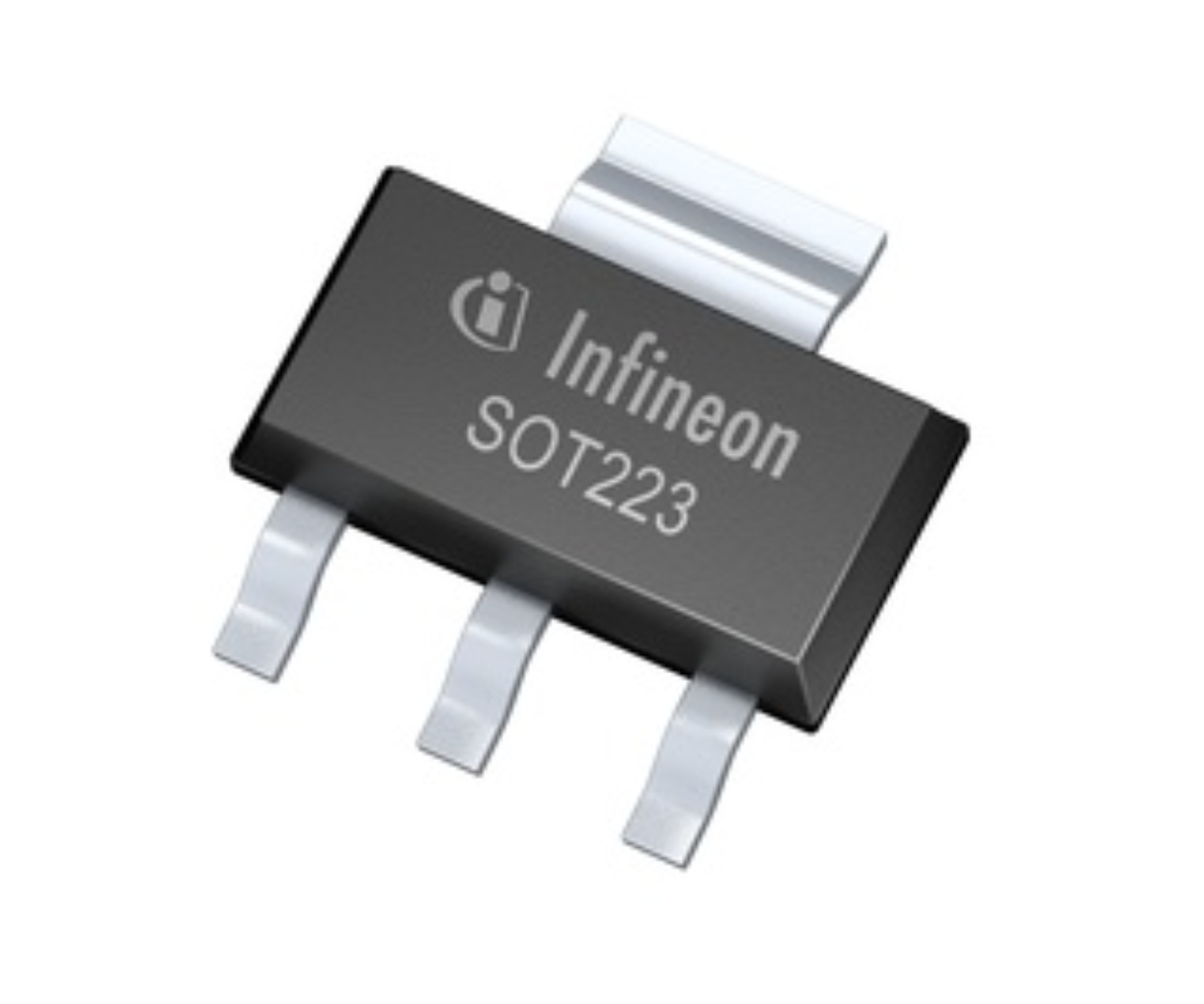

Image is for your reference only,please check specifications for details
- BTS4140N - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC1673344
-
Category:FET Driver
-
Package:TO-261-4
-
Datasheet:Datasheet 3D Model
-
Description:Buffer/Inverter Based Peripheral Driver, 1 Driver, 0.2A, MOS, PDSO4, SOT-223, 4Pin
-
Stock Locations:
-
Availability:3,491 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.23
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Current controlled input
- Short circuit protection
- Current limitation
- Shutdown when undervoltage
- Overvoltage protection (including load dump)
- Switching inductive loads
- Thermal shutdown with restart
- ESD- Protection
- Loss GND and loss Vbb protection
- Very low stand by current
- Reverse battery protection
- Improved electromagnetic compatibility(EMC)
- AEC qualified
- Green product (RoHS compliant)
- Benefits:
- Negative voltage clamped at output with inductive loads
- Current limitation
- Very low standby current
- Thermal shutdown with restart
- ESD-Protection
BTS4140N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Supply Voltage (DC) | 4.50V (min) |
| Number of Outputs | 1 Output |
| Output Current | 0.2 A |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Power Dissipation | 1.7 W |
| Output Current (Max) | 200 mA |
| Output Current (Min) | 0.2 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1700 mW |
| Supply Voltage | 4.9V ~ 60V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
