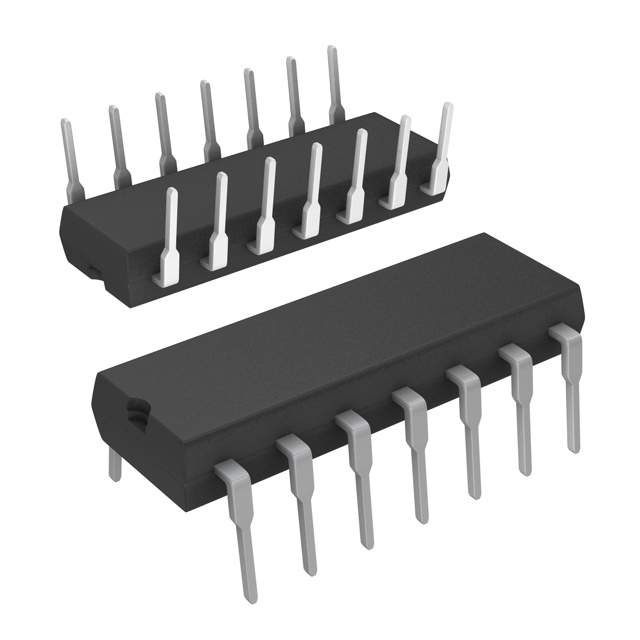

Image is for your reference only,please check specifications for details
- BU4584B - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC133473336
-
Category:Logic Control, Logic Gate IC
-
Package:SOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Inverter Schmitt Trigger 6Element CMOS 14Pin DIP Tube
-
Stock Locations:
-
Availability:987 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.74
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ●Description
- BU4001B series ICs are 2-input positive logic NOR gates, each with four built-in circuits. A buffer achieved by an inverter added at the gate output improves the input/ output propagation characteristics and minimizes variation in the propagation time caused by an increase in the load capacitance. BU4011Bseries ICs are 2-input positive logic NAND gates. Four circuits are contained on a single chip. An inverter-based buffer is included at the gate output, enabling improved input / output propagation characteristics, and an increased load capacitance minimizes fluctuations in the propagation time.
- BU4030B and BU4070B series ICs are exclusive OR gates, each with four built-in circuits. An inverter-based buffer was incorporated at the gate output for enhanced I/O voltage characteristics, and the load capacitance has been increased in order to minimize fluctuations in the propagation time. BU4081B series are 2-input positive logic AND gates with four circuits
- mounted on a single chip. An inverter-type buffer was added to the gate output, improving input/output transmission speed, and an increased load capacitance suppresses fluctuations in the transmission time. BU4093B series ICs are 4-circuit, 2-input NAND gates whose input pins all have a Schmitt trigger function. BU4069UB series ICs are 6-circuit inverters with no buffers. A single-stage gate configuration reduces propagation time. BU4584B series ICs are inverter-type Schmitt trigger circuits, each incorporating 6 circuits in a single chip.
- ● Features
- 1) Low power consumption
- 2) Broad operating supply voltage range: 3V to 16V
- 3) High input impedance
- 4) High fan out
- 5) L-TTL2 and LS-TTL1 inputs can be directly driven
- 6) All outputs are equipped with buffers (except for BU4069UB)
- ● Applications
- These products are suitable for applications requiring low power consumption and a high degree of noise tolerance
- The BU4030B/BU4070B series can be used in digital comparators and parity circuits
- The BU4093B series are suitable as line receivers, waveform shaping and multi-vibrators, etc.
- The BU4584B series can be used in waveform shaping circuits for inputs with a slow rise time and fall time
BU4584B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | SOP-14 |
| Supply Voltage (DC) | 15.0 V, 18.0 V |
| Number of Circuits | 6 Circuit |
| Number of Gates | 6 Gate |
| Number of Inputs | 6 Input |
| Supply Voltage | 3V ~ 16V |
| Supply Voltage (Max) | 16 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
