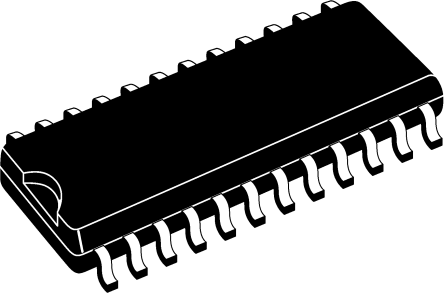

Image is for your reference only,please check specifications for details

L6206D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC18157559
Category:
Motor Driver
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
L6206 Series Dual Full Bridge 52V 5.6A 0.3Ω DMOS Driver SMT - SOIC-24
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.93

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6206D is a dual DMOS full-bridge Driver realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. It features thermal shutdown and a non-dissipative overcurrent detection on the high-side power MOSFETs plus a diagnostic output that can be easily used to implement the overcurrent protection.
Programmable high-side overcurrent detection and protection
Diagnostic output
Paralleled operation
Cross conduction protection
Thermal shutdown
Under-voltage lockout
Integrated fast free-wheeling diodes
5.6A Output peak current (2.8A DC)
0.3R at Tj=25°C Typical RDS(ON)
Up to 100kHz operating frequency

Show

L6206D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Supply Voltage (DC)	52.0V (max)
Number of Outputs	4 Output
Output Current	2.8 A
Supply Current	10.0 mA
Number of Channels	2 Channel
Number of Positions	24 Position
Output Voltage (Max)	60 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	8 V
	Show
Size-Length	15.6 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
