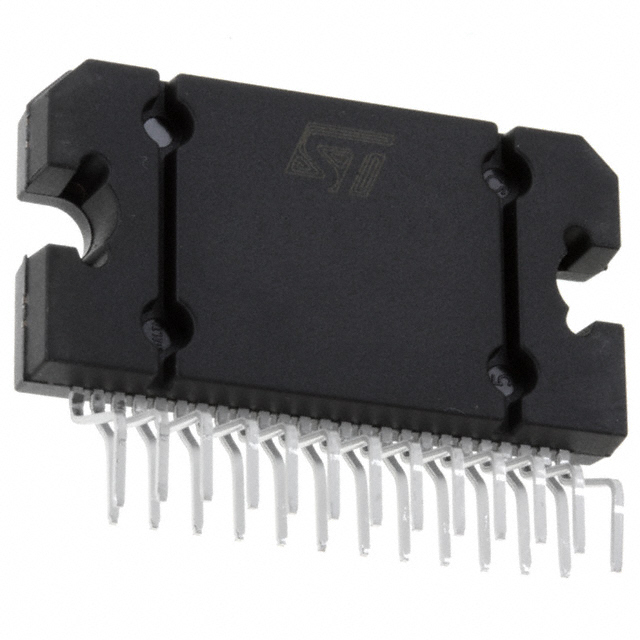

Image is for your reference only,please check specifications for details

TDA7854 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC63413446
Category:
Audio Amplifier IC
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Audio Amp Speaker 4CH Stereo 48W Class-AB Automotive 25Pin(25+Tab) FLEXIWATT(Vertical) Tube
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TDA7854 is a breakthrough MOSFET technology class AB audio power amplifier in Flexiwatt 25 package designed for high power car radio. The fully complementary P-Channel/N Channel output structure allows a rail to rail output voltage swing which, combined with high output current and minimized saturation losses sets new power references in the car-radio field,
with unparalleled distortion performances.
Features
■ Multipower BCD technology
■ High output power capability:
–4 x 47W/4Ωmax.
–4 x 80W/2Ωmax.
■ MOSFET output power stage
■ Excellent 2Ωdriving capability
■ Hi-fi class distortion
■ Low output noise
■ St-by function
■ Mute function
■ Automute at min. supply voltage detection
■ Low external component count:
– Internally fixed gain (26dB)
– No external compensation
– No bootstrap capacitors
Protections:
■ Output short circuit to GND, to Vs, across the load
■ Very inductive loads
■ Overrating chip temperature with soft thermal limiter
■ Load dump voltage
■ Fortuitous open GND
■ Reversed battery
■ ESD

Show
