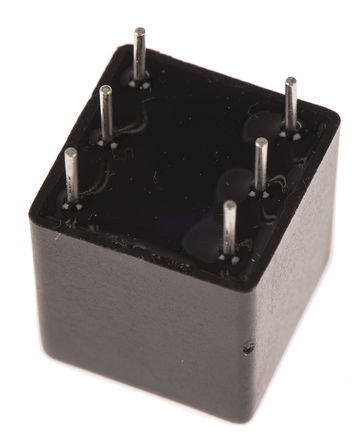

1002C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC25794271
Category:
Transformer
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Pulse Transformer 1:1:1 2000Vrms 1.4Ω Prim. DCR 1.3Ω/1.7Ω Sec. DCR 28pF 200Vus Through Hole
Stock Locations:
Availability:
281 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.83

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1002C is a 3mH Pulse Transformer with matte tin plated finish pins and the materials used for this transformer are mates with UL94V-0 standards. This 1000 series PCB mount compact footprint transformer is rated with 3mH primary inductance and 2000Vrms isolation voltage. This pulse transformer is intended for use in wideband and pulse operations. They are also suitable for signal isolation and use in small isolated power supplies. The compact footprint makes them ideal for applications where space is at a premium.
28pF Interwinding capacitance
300°C for 10 seconds Peak wave solder temperature

Show

1002C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Capacitance	28 pF
Flammability Rating	UL 94 V-0
Inductance	3 mH
Isolation Voltage	2 kV
DC Resistance (DCR)	1.4 Ω
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	15.06 mm
Size-Width	15.06 mm
Size-Height	15.75 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
