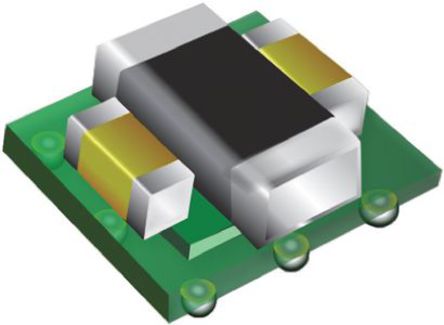

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS82671SIPT is a fully integrated low noise step-down power supply Converter Module intended for low-power applications. No additional components are required to finish the design. The TPS8267x is based on a high-frequency synchronous step-down DC-DC converter optimized for battery-powered portable applications. The MicroSiP™ DC/DC converter operates at a regulated 5.5MHz switching frequency and enters the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The PFM mode extends the battery life by reducing the quiescent current to 17µA during light load operation. For noise-sensitive applications, the device has PWM spread spectrum capability providing a lower noise regulated output, as well as low noise at the input. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency.
Spread spectrum, PWM frequency dithering
Best in class load and line transient
Automatic PFM/PWM mode switching
Low ripple light-load PFM mode
Integrated active power-down sequencing
Current overload and thermal shutdown protection
90% Efficiency at 5.5MHz operation
±2% Total DC voltage accuracy
Internal soft-start, 120µs start-up time
Sub 1mm profile solution
Green product and no Sb/Br

Show

TPS82671SIPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SIP-8
Frequency	5.5 MHz
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	600 mA
Quiescent Current	17.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	6 MHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	4.8 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	1.8 V
Output Current (Max)	600 mA
Output Current (Min)	0 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.3V ~ 4.8V
	Show
Size-Length	2.95 mm
Size-Width	2.35 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
