Description

Features
■ STmicroelectronics PREFERRED SALESTYPES
Applications
■ SWITCHING APPLICATIONS
■ LINEAR APPLICATIONS
Description

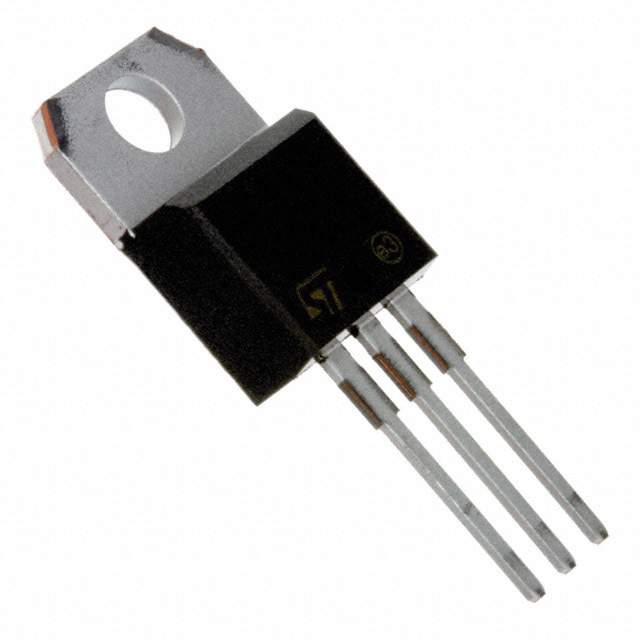

The BD243C device is a silicon Epitaxial-Base NPN transistor mounted in Jedec TO-220 plastic
package. It’s intend for use in medium power linear and switching applications. The complementary PNP type is BD244C.

Show

BD243C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Frequency	3 MHz
Voltage Rating (DC)	100 V
Current Rating	6.00 A
Power Rating	65 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	65 W
Breakdown Voltage (Collector to Emitter)	100 V
hFE Min	15 @3A, 4V
Input Power (Max)	65 W
DC Current Gain (hFE)	30
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	65000 mW
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
