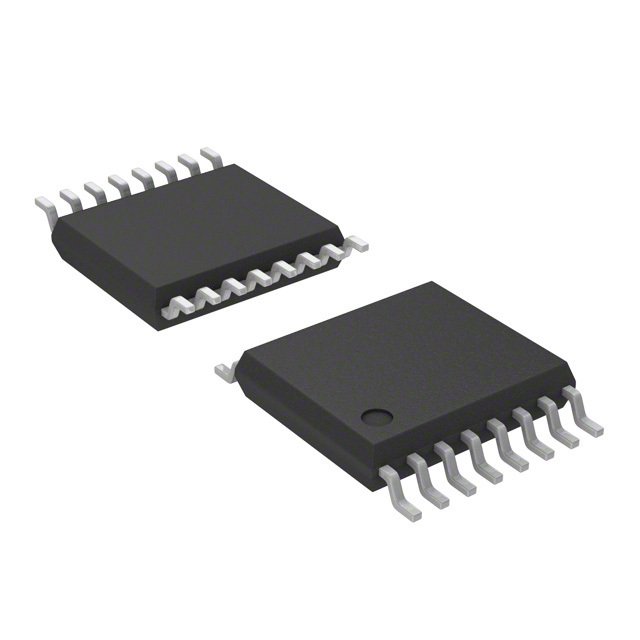

Image is for your reference only,please check specifications for details

PGA281AIPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC41783004
Category:
Amplifier, Buffer IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA281AIPW Programmable/Variable Amplifier, 1Channels, 1 Amplifier, 6MHz, -40℃, 125℃, 10V to 36V
Stock Locations:
Availability:
10,850 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 247.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA281 is a high-precision instrumentation amplifier with a digitally-controllable gain and signal-integrity test capability. This device uses proprietary autozeroing techniques to offer low offset voltage, near-zero offset and gain drift, excellent linearity, and nearly no 1/f noise.
The PGA281 is optimized to provide an excellent common-mode rejection of greater than 110 dB (G = 1) over a wide frequency range. Superior common-mode and supply rejection supports high-resolution, precise measurement. The 36-V supply capability and wide, high-impedance input range comply with requirements for universal signal measurement.
The PGA281 offers multiple internal gain options from ⅛ V/V (attenuation) to 176 V/V, making this a universal, high-performance, analog front-end suitable for a wide variety of applications. The fully differential, rail-to-rail output is designed to easily interface a wide range of input signals to the low-voltage domain of high-resolution analog-to-digital converters (ADCs).
The PGA281 is available in a TSSOP-16 package and is specified over a temperature range of –40°C to +105°C.

Show

PGA281AIPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Current	2.4 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	121 dB
Quiescent Current	3.00 mA
Bandwidth	6 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	6 MHz
Input Offset Voltage	5 µV
Input Bias Current	300 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	6 MHz
Minimum CMRR Range	121 dB
Supply Voltage	10V ~ 36V
Supply Voltage (Max)	30V ~ 50V
	Show
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 140℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
