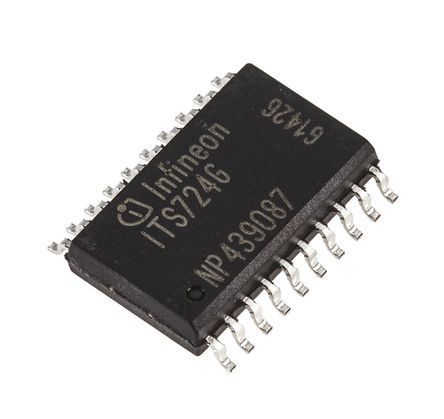

Image is for your reference only,please check specifications for details

ITS724G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC9388637
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
PG-DSO-20
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 4 Driver, 8.5A, PDSO20, GREEN, PLASTIC, SOP-20
Stock Locations:
Availability:
1,389 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.54

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

For Industrial Applications
Four Channels: 4 x 90mΩ
Status Feedback
General Description
• N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS®technology.
• Providing embedded protective functions
Applications
• µC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads in industrial applications
• All types of resistive, inductive and capacitve loads
• Most suitable for loads with high inrush currents, so as lamps
• Replaces electromechanical relays, fuses and discrete circuits

Show

ITS724G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PG-DSO-20
Supply Voltage (DC)	5.00V (min)
Number of Outputs	4 Output
Output Current	3 A
Supply Current	2.4 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Power Dissipation	3.6 W
Output Current (Max)	3 A
Output Current (Min)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	3600 mW
Supply Voltage	5.5V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	5.5 V
	Show
Size-Length	12.8 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-30℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
