Description
- General Description
- The DS3231M is a low-cost, extremely accurate, I2C real-time clock (RTC). The device incorporates a battery input and maintains accurate timekeeping when main power to the device is interrupted. The integration of the microelectromechanical systems (MEMS) resona
- tor enhances the long-term accuracy of the device and reduces the piece-part count in a manufacturing line. The DS3231M is available in the same footprint as the popular DS3231 RTC.
- Features
- • Timekeeping Accuracy Q5ppm (Q0.432 Second/Day) from -40NC to +85NC
- • Battery Backup for Continuous Timekeeping
- • Low Power Consumption
- • Footprint and Functionally Compatible to DS3231
- • Complete Clock Calendar Functionality Including Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year Compensation Up to Year 2100
- • Two Time-of-Day Alarms
- • 1Hz and 32.768kHz Outputs
- • Reset Output and Pushbutton Input with Debounce
- • Fast (400kHz) I2C-Compatible Serial Bus
- • +2.3V to +5.5V Supply Voltage
- • Digital Temp Sensor with Q3NC Accuracy
- • -40°C to +85°C Temperature Range
- • 8-Pin or 16-Pin SO (300 mils) Packages
- • Underwriters Laboratories (UL) Recognized
DS3231MZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |

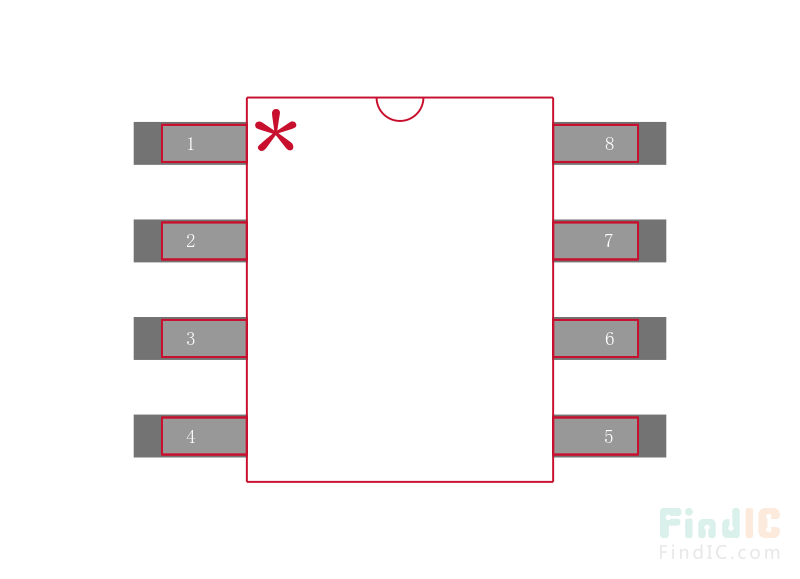

| Case/Package | SOIC-8 |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.3 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
