Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

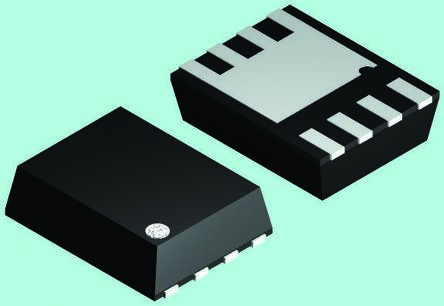

Case/Package | Power-8 |
Number of Positions | 8 Position |
Drain to Source Resistance (on) (Rds) | 0.0063 Ω |
Power Dissipation | 104 W |
Threshold Voltage | 2.9 V |
Drain to Source Voltage (Vds) | 100 V |
Rise Time | 11 ns |
Input Capacitance (Ciss) | 2255pF @50V(Vds) |
Input Power (Max) | 2.5 W |
Fall Time | 7 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 104 W |
Show | |
Size-Length | 5.1 mm |
Size-Width | 6.25 mm |
Size-Height | 1.05 mm |
Material | Silicon |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | Compliant with Exemption |
Lead-Free Status | Lead Free |
