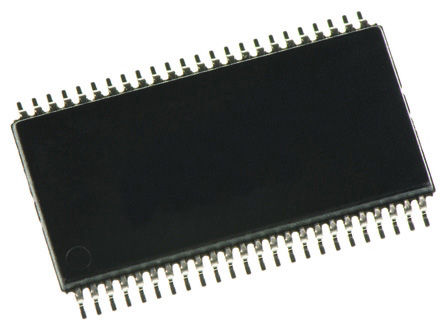

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- This 16-bit transparent D-type latch is designed for 2.7-V to 3.6-V VCC operation. The SN74LVC16373 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. It can be used as two 8-bit latches or one 16-bit latch. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the levels set up at the D inputs.
- FEATURES
- • Member of the Texas Instruments Widebus™ amily
- • EPIC™ (Enhanced-Performance Implanted MOS) Submicron Process
- • Typical VOLP (Output Ground Bounce) 0.8 V at VCC = 3.3 V, TA = 25°C
- • Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
- • Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
- • Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
- • Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages
SN74LVC16373DGGR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Outputs | 16 Output |
| Output Current | 24.0 mA |
| Number of Circuits | 2 Circuit |
| Number of Bits | 16 Bit |
| Polarity | Non-Inverting |
| Voltage Nodes | 3.30 V, 2.70 V, 2.50 V, 1.80 V |
| Number of Inputs | 16 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.65V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 12.5 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
