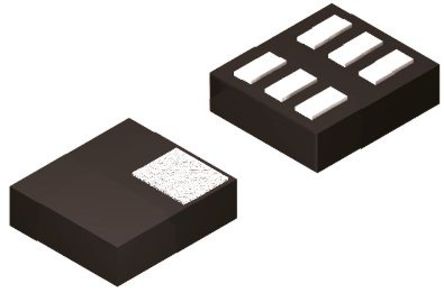

Image is for your reference only,please check specifications for details

NCP133AMXADJTCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC23375073
Category:
Voltage Regulator
Package:
XDFN-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP133AMXADJTCG LDO Voltage Regulator, Adjustable, 800mV to 5.5V in, 140mV drop, 800mV to 3.6V/0.5A out, XDFN-6
Stock Locations:
Availability:
281 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.54

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP133AMXADJTCG is a very low-dropout bias rail CMOS Voltage Regulator equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCP133 features low IQ consumption.
Logic level enable input for ON/OFF control
Stable with a 2.2µF ceramic capacitor
±1.5% Accuracy overtemperature, 0.5% VOUT at 25°C
140mV at 500mA Ultra-low-dropout
80µA Very low bias input current

Show

NCP133AMXADJTCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	XDFN-6
Number of Outputs	1 Output
Output Voltage	0.8V ~ 3.6V
Output Current	500 mA
Number of Positions	6 Position
voltage rating	140 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0.8 V
Output Voltage (Max)	3.6 V
Output Voltage (Min)	800 mV
Output Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	5.5 V
	Show
Size-Length	1.2 mm
Size-Width	1.2 mm
Size-Height	0.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
