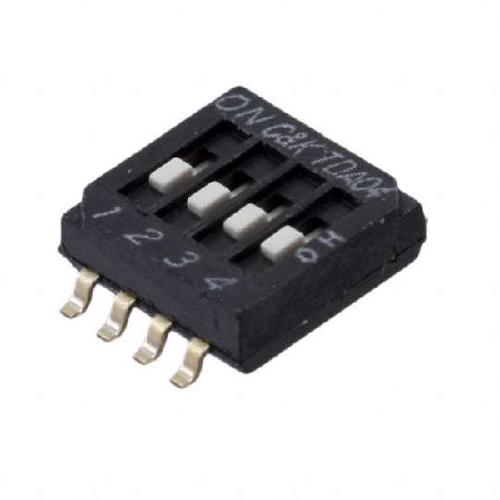

TDA04H0SB1 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC4714950
Category:
DIP Switch, SIP Switch
Package:
DIP-4
Datasheet:
Datasheet 3D Model
Description:
C & K COMPONENTS TDA04H0SB1 DIP / SIP Switch, 4Circuits, SPST, SMD, TDA Series, DIP Sealed, 24VDC
Stock Locations:
Availability:
10,134 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TDA series half-pitch DIP Switch features ultra-miniature surface-mount and bifurcated contact for increased electrical reliability. Process sealed for surface mount soldering and washable processing. Suitable for use with hand-held electronic devices, portable computer and electronic devices and instrumentation controls applications.
1000 Cycles mechanical and electrical life
100mR Maximum contact resistance
100MR Minimum insulation resistance at 100VDC
300VAC Minimum dielectric strength
4.9N Maximum operating force
UL94V-0 Flammability rated PPS case and cover
UL94V-0 Flammability rated LCP actuator
Copper alloy with gold plate over nickel plate contacts
Copper alloy with gold flash over nickel plate terminals
-40 to 85°C Operating temperature

Show

TDA04H0SB1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	DIP-4
Voltage Rating (DC)	24 V
Current Rating	25 mA
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Positions	4 Position
Current Rating (Max)	0.025A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	6.20 mm
Size-Height	2.2 mm
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
