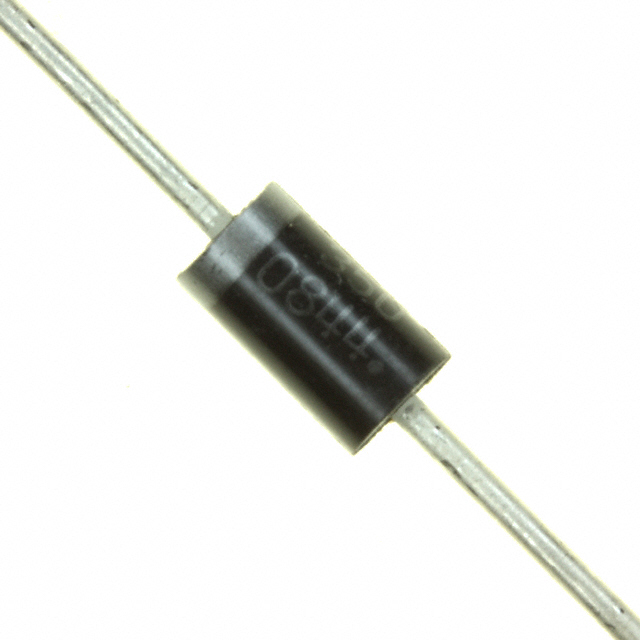

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- STANDARD RECOVERY RECTIFIERS 50−1000 VOLTS 3.0 AMPERES
- Features
- • High Current to Small Size
- • High Surge Current Capability
- • Low Forward Voltage Drop
- • Void−Free Economical Plastic Package
- • Available in Volume Quantities
- • Plastic Meets UL 94 V−0 for Flammability
- • These devices are manufactured with a Pb−Free external lead finish only
- Mechanical Characteristics
- • Case: Epoxy, Molded
- • Weight: 1.1 gram (approximately)
- • Finish: All External Surfaces Corrosion Resistant and Terminal
- Leads are Readily Solderable
- • Lead and Mounting Surface Temperature for Soldering Purposes:
- 220°C Max. for 10 Seconds, 1/16″ from case
- • Polarity: Cathode Indicated by Polarity Band
1N5404 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-201AA |
| Voltage Rating (DC) | 400 V |
| Current Rating | 3.00 A |
| Output Current | ≤3.00 A |
| Number of Positions | 2 Position |
| Forward Voltage | 1V @3A |
| Polarity | Standard |
| Forward Current | 3 A |
| Max Forward Surge Current (Ifsm) | 200 A |
| Maximum Forward Voltage (Max) | 1.2 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
