Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

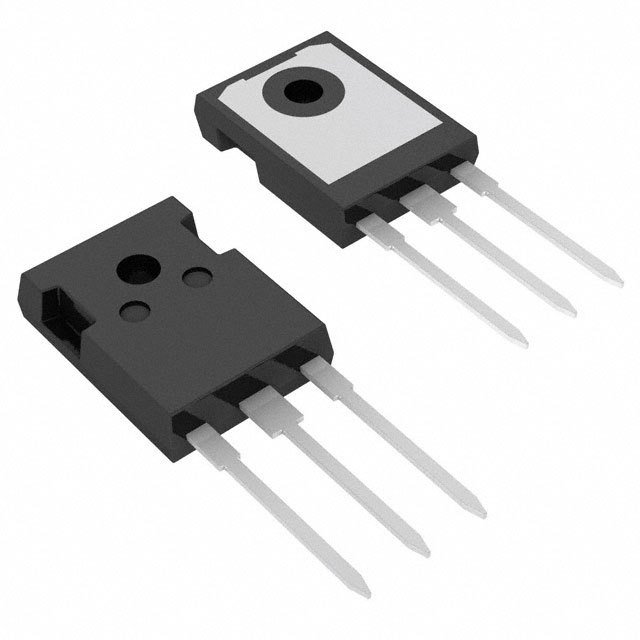

Case/Package | TO-247-3 |
Number of Channels | 1 Channel |
Drain to Source Resistance (on) (Rds) | 75 mΩ |
Power Dissipation | 280 W |
Drain to Source Voltage (Vds) | 250 V |
Breakdown Voltage (Drain to Source) | 250 V |
Rise Time | 99 ns |
Input Capacitance (Ciss) | 4800pF @25V(Vds) |
Fall Time | 92 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 55 ℃ |
Power Dissipation (Max) | 280W (Tc) |
Show | |
Size-Length | 16.26 mm |
Size-Width | 5.3 mm |
Size-Height | 21.46 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Obsolete |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
