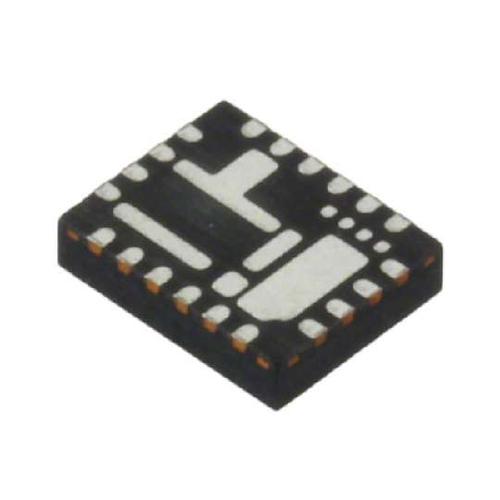

Image is for your reference only,please check specifications for details
- EN5311QI - Altera
-
Manufacturer:Altera
-
ManyChip's Part#:MC40679763
-
Category:DC to DC Converter
-
Package:QFN-20
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.4V to 5.5V Step Down Single-Out 0.6V to 4.9V 1A 20Pin QFN EP
-
Stock Locations:
-
Availability:292 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.12
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down EN5311QI DC to DC converter from Altera. This converter"s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 2.4 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 0.6 to 4.9 V, this is power management at its best. This converter is 95 % efficient. It has a switching frequency of 4000(Typ) kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C. The converter is ideal for operating at an isolation of Isolated.
EN5311QI Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | QFN-20 |
| Power Rating | 6 W |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 4.9V |
| Output Current | 1 A |
| Switching Frequency | 4000 kHz |
| Input Voltage (Max) | 6.6 V |
| Input Voltage (Min) | 2.4 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Min) | 2.4 V |
| Input Voltage | 2.4V ~ 6.6V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
