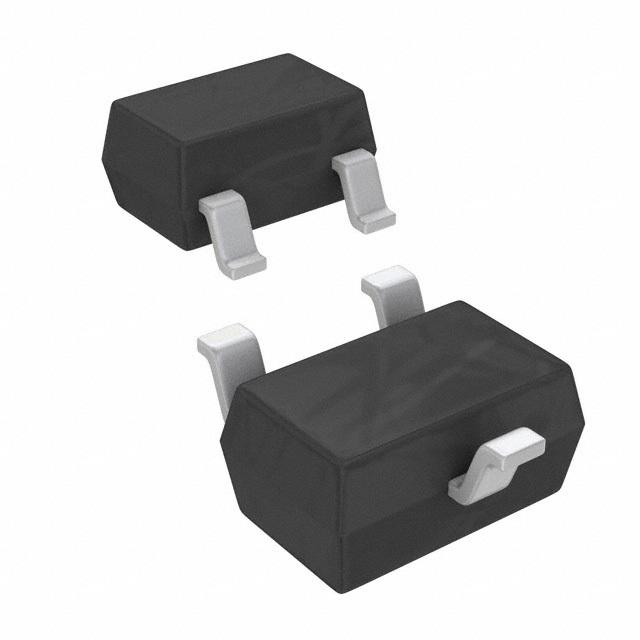

Image is for your reference only,please check specifications for details

ESDA25W - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC8208671
Category:
TVS Diode
Package:
SOT-323-5
Datasheet:
Datasheet 3D Model
Description:
ESDA Series 2Channel 25V 65pF SMT Uni Directional Transil Array - SOT-323
Stock Locations:
Availability:
1,967 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESDA25W is a TRANSIL™ ESD Protection Array Device for data protection. It is designed to protect components connected to data and transmission lines against ESD. The device clamps the voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients.
2 up to 5 Unidirectional Transil functions
<1µA Low leakage current
High ESD protection level up to 25kV
High integration
-40 to 125°C Operating temperature range

Show

ESDA25W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323-5
Voltage Rating (DC)	25.0 V
Operating Voltage	1.2 V
Capacitance	65 pF
Power Rating	150 W
Breakdown Voltage	25 V
Number of Circuits	2 Circuit
Number of Positions	3 Position
Power Dissipation	400 W
Test Current	1 mA
Peak Pulse Power	400 W
Min Breakdown Voltage	25 V
Reverse Breakdown Voltage	25 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.20 mm
Size-Width	1.35 mm
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
