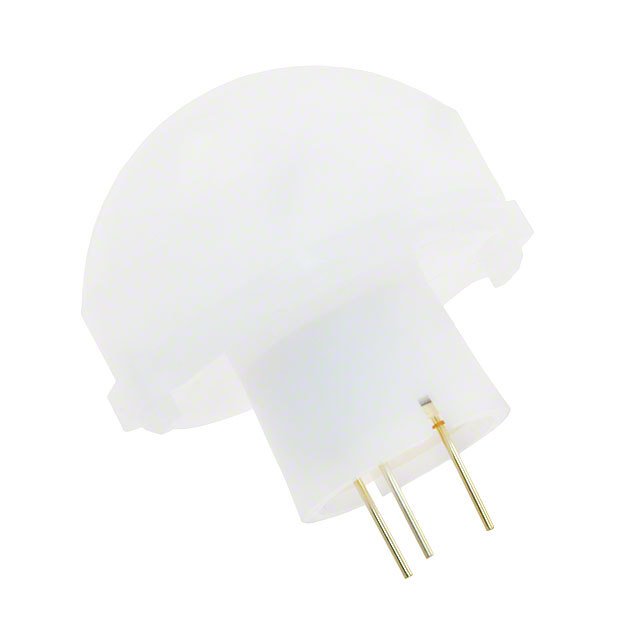

Image is for your reference only,please check specifications for details
- EKMC1603113 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC10556393
-
Category:Motion Sensor
-
Package:TO-5
-
Datasheet:Datasheet 3D Model
-
Description:PIR Sensor, PaPIRS, Digital, Pearl White, 12m, 3VDC, 6VDC, 102°, EKMC Series
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EKMC1603113 is a high-sensitive human detection PIR MOTION Sensor with built-in amplifier. VZ series simplified circuitry with fully integrated circuit design. Reduction of current consumption allows battery life to be extended for battery driven products, including wireless based and low power consumption devices. The entire circuitry is enclosed in a metal package, which means it has high electromagnetic shielding capability. A short focal length is all that"s required even when detecting at the same distance, which means both downsizing and high sensitivity are achieved.
- Super low current consumption
- Sensing circuits enclosed in a TO5 can
- Excellent noise resistance
- Miniaturized lenses with small element
EKMC1603113 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-5 |
| Supply Voltage (DC) | 3.00V (min) |
| Output Current | 200 µA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 3V ~ 6V |
| Supply Voltage (Max) | 6 VDC |
| Supply Voltage (Min) | 3 VDC |
| Show | |
| Size-Height | 20.2 mm |
| Operating Temperature | -20℃ ~ 60℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
