HEF4066BT - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC55332793
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:

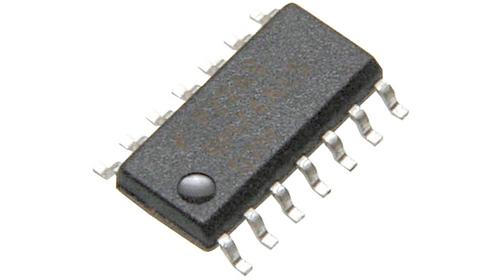

NXP HEF4066BT Analogue Switch, SPST, 4Channels, 350Ω, 4.5V to 15.5V, SOIC, 14Pins
Stock Locations:
Availability:
10,544 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4066BT is a quad single-pole single-throw Analogue Switch. Each switch has two input/output terminals (nY and nZ) and an active high enable input (nE). When nE is low, the analogue switch is turned off. The HEF4066B is pin compatible with the HEF4016B but exhibits a much lower on resistance. In addition the on resistance is relatively constant over the full input signal range.
Fully static operation
Standardized symmetrical output characteristics
Inputs and outputs are protected against electrostatic effects
Complies with JEDEC standard JESD 13-B

Show

HEF4066BT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	15.0 V
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	100 mW
Number of Gates	4 Gate
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	90 MHz
Supply Voltage	4.5V ~ 15.5V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
