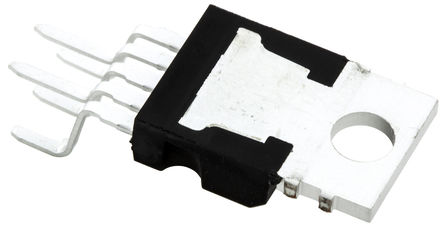

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L200CV is a monolithic integrated circuit for voltage and current programmable regulation. Current limiting, power limiting, thermal shutdown and input overvoltage protection (up to 60 V) make the L200CV virtually blow out proof. The L200CV can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.
Adjustable output current up to 2A
Adjustable output voltage down to 2.85V
Input overvoltage protection up to 60V, 10ms
Short circuit protection
Output transistor S.O.A protection
Thermal overload protection
Low bias current on regulator pin
Low standby current drain

Show

L200CV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	Pentawatt-5
Supply Voltage (DC)	40.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	18.0V (max)
Output Voltage	2.85V ~ 36V
Output Current	2 A
Supply Current	9.2 mA
Number of Positions	5 Position
Quiescent Current	4.2 mA
voltage rating	2V @1.5A
Input Voltage (Max)	40 V
Input Voltage (Min)	8 V
Output Voltage (Max)	36 V
Output Voltage (Min)	2.85 V
Output Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	≤40 V
	Show
Size-Length	10.4 mm
Size-Width	4.8 mm
Size-Height	9.2 mm
Operating Temperature	-25℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
