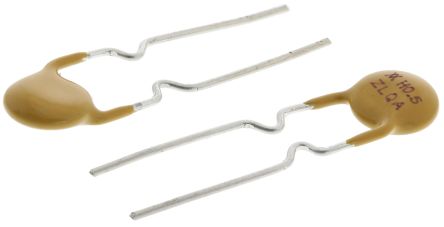

Image is for your reference only,please check specifications for details
- RHEF050 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC23257600
-
Category:Fuse
-
Package:Radial
-
Datasheet:Datasheet 3D Model
-
Description:PTC-самовосстанавливающийся предохранитель 0,5 А (рабочий ток) 0,9 А (ток срабатывания) 30 В постоянного тока 40 А 0,9 Вт 2,5 с 0,48 Ом радиальный 7,4 × 3 мм в пакете
-
Stock Locations:
-
Availability:132 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.58
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия PolySwitch RHEF — радиальные самовосстанавливающиеся устройства, обеспечивающие более равномерное тепловое снижение мощности и рабочие температуры до 125 °C. Совместимы с высокопроизводительными методами сборки электронных компонентов.
- Большой выбор изделий предоставляет инженерам большую гибкость при проектировании
- Содействует соблюдению нормативных требований
- Более высокие номинальные напряжения позволяют использовать устройства в новых областях применения
- Наиболее широкий в отрасли ассортимент радиальных самовосстанавливающихся устройств
- Номинальные токи от 50 мА до 15 А
- Номинальные напряжения от 6 В (для компьютерной и электронной техники) до 99 В
- Утверждены UL, CSA и TÜV
- Быстрое время срабатывания
- Низкое сопротивление
RHEF050 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Radial |
| Pin Pitch | 5.8 mm |
| Voltage Rating (DC) | 30.0 V |
| Operating Voltage | 30.0 V |
| Time to Trip | 2.5 s |
| Power Dissipation | 0.9 W |
| Resistance | 1.1 Ω |
| Holding Current | 0.5 A |
| Trip Current | 920 mA |
| Current Rating (Max) | 40 A |
| Holding Current (Max) | 500 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 30 VDC |
| Voltage Rating | 30 VDC |
| Show | |
| Size-Length | 12.7 mm |
| Size-Height | 12.7 mm |
| Size-Thickness | 3 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
