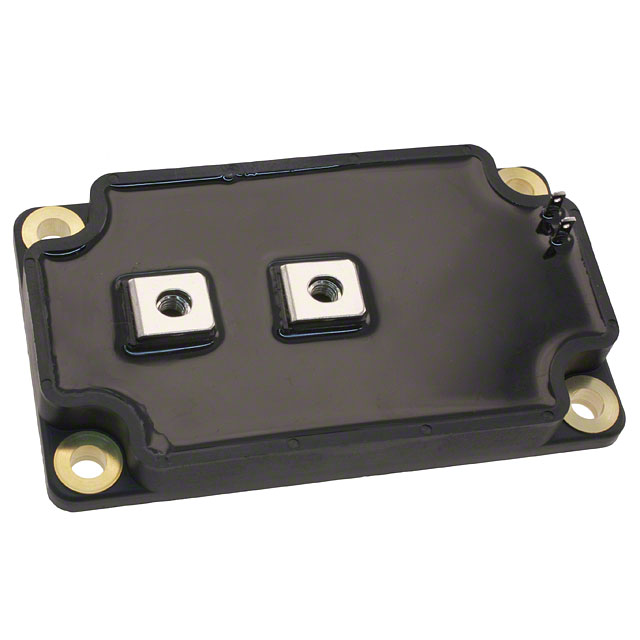

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

APTM100UM65SAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	4 Pin
Case/Package	SP-6
Polarity	N-CH
Power Dissipation	3250000 mW
Drain to Source Voltage (Vds)	1000 V
Continuous Drain Current (Ids)	145A
Rise Time	14 ns
Input Capacitance (Ciss)	28500pF @25V(Vds)
Fall Time	55 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3250W (Tc)
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
