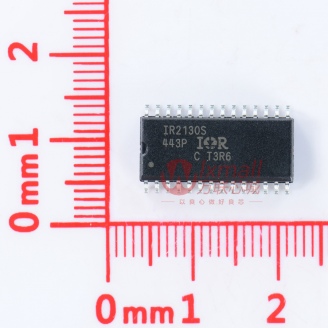

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three indepen
dent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized
monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.
Features
•Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
•Gate drive supply range from 10 to 20V
•Undervoltage lockout for all channels
•Over-current shutdown turns off all six drivers
•Independent half-bridge drivers
•Matched propagation delay for all channels
•2.5V logic compatible
•Outputs out of phase with inputs
•Cross-conduction prevention logic
•Also available LEAD-FREE
