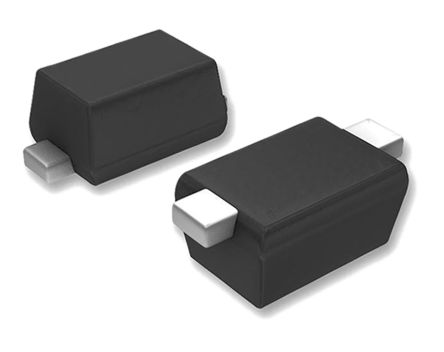

Image is for your reference only,please check specifications for details
- BAS1602VH6327XTSA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC2022533
-
Category:TVS Diode
-
Package:SC-79-2
-
Datasheet:Datasheet 3D Model
-
Description:Diode: switching; SMD; 85V; 0.2A; 4ns; 0.25W(1/4W); Package: reel, tape
-
Stock Locations:
-
Availability:6,067 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.04
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- For high-speed switching applications
- Electrical insulated diodes
- Pb-free (RoHS compliant) package1)
- Qualified according AEC Q101
BAS1602VH6327XTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SC-79-2 |
| Power Rating | 250 mW |
| Load Current | 0.2 A |
| Forward Voltage | 1.25V @150mA |
| Power Dissipation | 250 mW |
| Reverse recovery time | 4 ns |
| Forward Current | 200 mA |
| Maximum Forward Voltage (Max) | 1.25V @150mA |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 150℃ (Max) |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Length | 1.2 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.55 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
