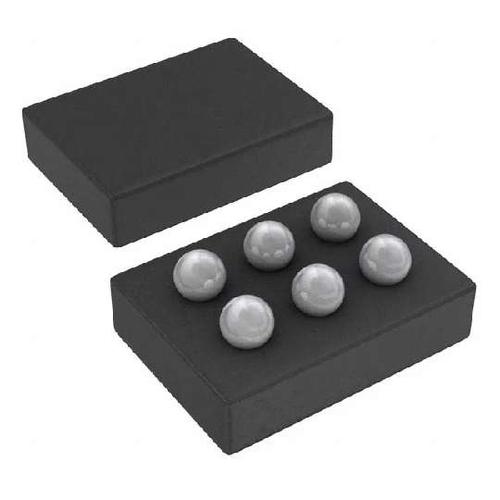

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS61046 is a highly integrated boost converter designed for applications requiring high voltage and tiny solution size such as PMOLED panel and sensor module. The TPS61046 integrates a 30-V power switch, input/output isolation switch, and power diode. It can output up to 28 V from input of a Li+ battery or two cell alkaline batteries in series.
- The TPS61046 operates with a switching frequency at 1.0 MHz. This allows the use of small external components. The TPS61046 has an internal default 12-V output voltage setting by connecting the FB pin to the VIN pin. Thus it only needs three external components to get 12-V output voltage. Together with WCSP package, the TPS61046 gives a very small overall solution size. The TPS61046 has typical 900-mA switch current limit. It has 10-ms built-in soft start time to minimize the inrush current. When the TPS61046 is in shutdown mode, the isolation switch disconnects the output from input to minimize the leakage current. The TPS61064 also implements output short circuit protection, output over-voltage protection and thermal shutdown.
- The TPS61046 is available in a 6-pin 0.80-mm × 1.20-mm WCSP package.
TPS61046YFFR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | DSBGA-6 |
| Frequency | 1.05 MHz |
| Number of Outputs | 1 Output |
| Output Voltage | 4.5V ~ 28V |
| Output Current | 1.2 A |
| Quiescent Current | 110 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 1.05 MHz |
| Topology | Boost |
| Switching Current | 0.9 A |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1.8 V |
| Output Voltage (Max) | 28 V |
| Output Voltage (Min) | 4.5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 1.162 mm |
| Size-Width | 0.822 mm |
| Size-Height | 0.625 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
