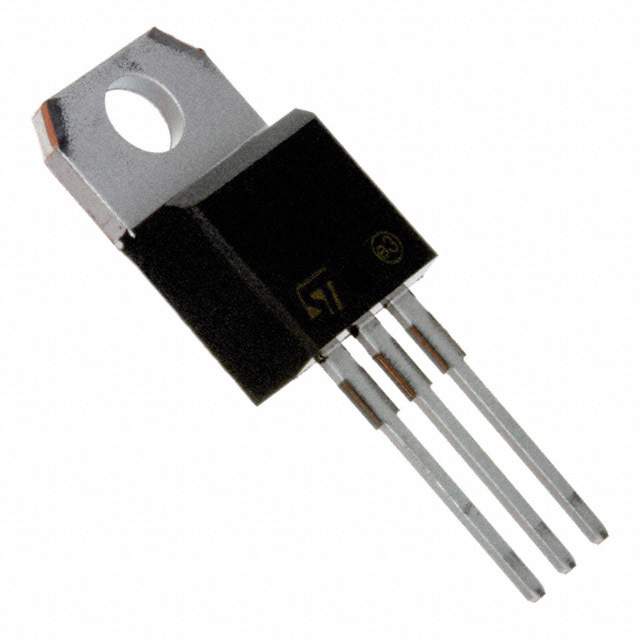

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The VNP35N07 is a monolithic device made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linearcurrent limitation and overvoltage clamp protect the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin.
■ LINEAR CURRENT LIMITATION
■ THERMAL SHUT DOWN
■ SHORT CIRCUIT PROTECTION
■ INTEGRATED CLAMP
■ LOW CURRENT DRAWN FROM INPUT PIN
■ DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
■ ESD PROTECTION
■ DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING)
■ COMPATIBLE WITH STANDARD POWER MOSFET
■ STANDARD TO-220 PACKAGE

Show

VNP35N07 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	70.0 V
Current Rating	35.0 A
Number of Outputs	1 Output
Drain to Source Resistance (on) (Rds)	28.0 mΩ
Polarity	N-Channel
Power Dissipation	125 W
Breakdown Voltage (Drain to Source)	70.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	35.0 A
Rise Time	350 ns
Output Current (Max)	25 A
	Show
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
