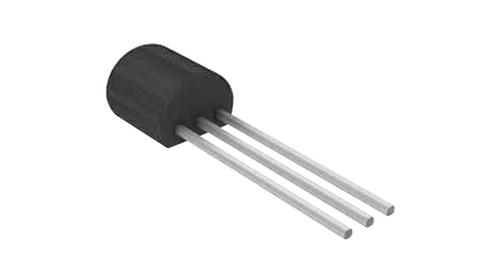

Image is for your reference only,please check specifications for details

ZTX690B - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC37823533
Category:
BJT Transistor, BJT
Package:
E-Line-3
Datasheet:
Datasheet 3D Model
Description:
ZTX690B Series NPN 2A 45V Silicon Planar Medium Power Transistor - TO-92-3
Stock Locations:
Availability:
1,549 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ZTX690B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	E-Line-3
Voltage Rating (DC)	45.0 V
Current Rating	2.00 A
Power Rating	1 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	2A
hFE Min	400 @1A, 2V
Input Power (Max)	1 W
DC Current Gain (hFE)	500
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Material	Silicon
Operating Temperature	-55℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
