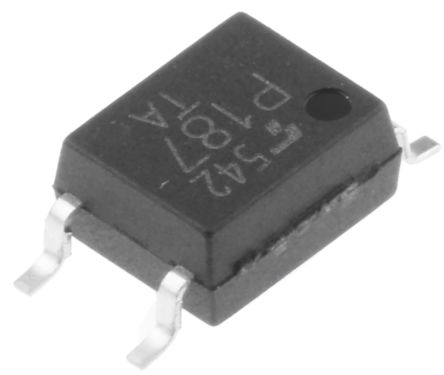

Image is for your reference only,please check specifications for details
- TLP187 - Toshiba
-
Manufacturer:Toshiba
-
ManyChip's Part#:MC24139532
-
Category:Optocoupler, Optoisolator
-
Package:DIP-6
-
Datasheet:Datasheet 3D Model
-
Description:TOSHIBA TLP187 Optocoupler, Darlington Output, 1Channel, Surface Mount DIP, 4Pins, 50mA, 3.75kV, 1000%
-
Stock Locations:
-
Availability:871 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.57
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
TLP187 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | DIP-6 |
| Rise/Fall Time | 40μs, 15μs |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.25 V |
| Rise Time | 40 µs |
| Isolation Voltage | 3.75 kV |
| Output Voltage (Max) | 300 V |
| Input Current (Min) | 150 mA |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 15 µs |
| Show | |
| Operating Temperature | -55℃ ~ 110℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
