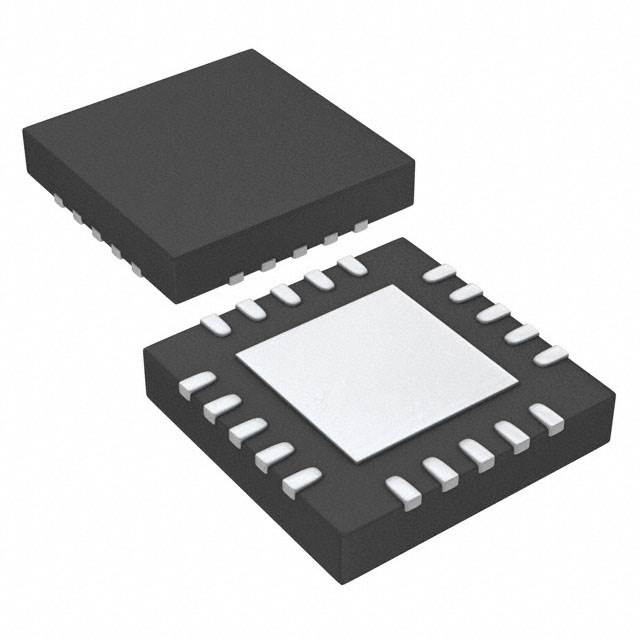

Image is for your reference only,please check specifications for details

TPS74401RGRT - TI
Manufacturer:
TI
ManyChip's Part#:
MC9537600
Category:
Voltage Regulator
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS74401RGRT LDO Voltage Regulator, Adjustable, 1.1V to 5.5V in, 800mV to 3.6V/3A out, 115mV drop, VQFN-20 New
Stock Locations:
Availability:
287 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.8

Updated at 24/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TPS74401RGRT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Number of Outputs	1 Output
Output Voltage	0.796V ~ 3.6V
Output Current	3 A
Number of Positions	20 Position
Quiescent Current	3.00 mA
Output Capacitor Type	Ceramic
voltage rating	115 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.1 V
Output Voltage (Max)	3.6 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	5.5 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
