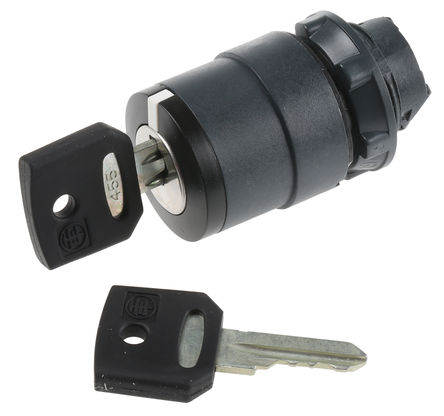

Image is for your reference only,please check specifications for details

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZB5AG2 is a Ø22mm round Signalling Head for key selector switch. This head has plastic bezel and 2 positions 90° black key switch stay put operator. It is suitable for use with the harmony XALF and XB5 series switches.
Left key withdrawal position
Ronis 455 Type of keylock
Class II conforming to IEC 60536 protection
IP69K/IK06 Protection rating
NEMA 4X/13 Protection rating
1000000 Cycles mechanical durability

Show

ZB5AG2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Actuator Type	Key
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
	Show
Housing Material	Plastic
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
