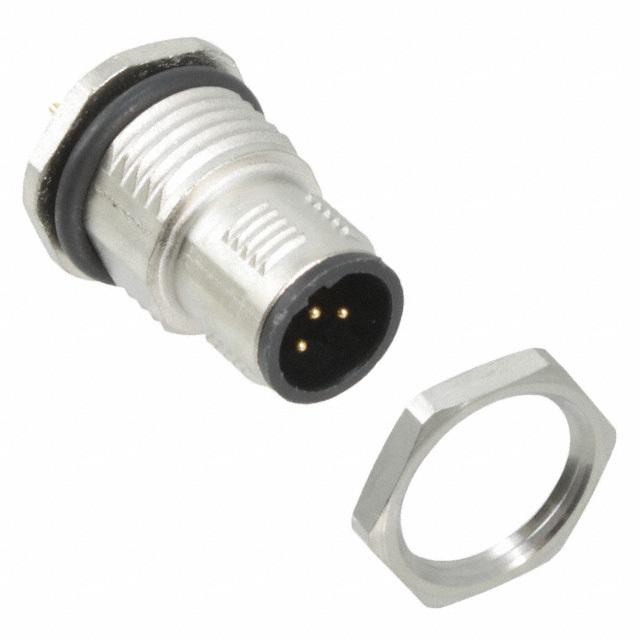

Image is for your reference only,please check specifications for details
- 1542745 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC38113863
-
Category:Circular Connector, Connector Circular
-
Datasheet:Datasheet 3D Model
-
Description:Circular Connector, 5Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT
-
Stock Locations:
-
Availability:237 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.49
Updated at 24/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Conn Sensor Actuator M 5 POS Solder ST Panel Mount 5 Terminal 1 Port
1542745 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel, Solder |
| Number of Contacts | 5 Contact |
| Gender | Male |
| Contact Plating | Gold |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 4 A |
| Number of Positions | 5 Position |
| Current Rating (Max) | 4 A |
| Voltage Rating (Max) | 60 V |
| Voltage Rating | 60 V |
| Show | |
| Size-Height | 18 mm |
| Contact Material | Brass |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694020 |
| ECCN Code | EAR99 |
