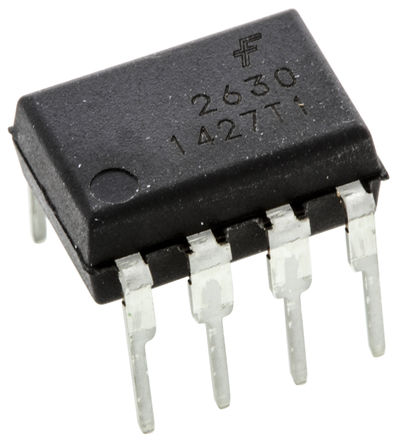

HCPL2630 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC4367526
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR HCPL2630 Optocoupler, Digital Output, 1Channel, 5kV, 10Mbps, DIP, 8Pins
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.86

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HCPL2630 is a 2-channel 10Mbps high-speed Logic Gate Output Optocoupler consists of a 850nm AlGaAS LED, optically coupled to a very high-speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over wide temperature range. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10kV/µs.
480V Double working voltage
Fan-out of 8 over -40 to +85°C temperature range
Logic gate output
Strobable output
Wired OR-open collector

Show

HCPL2630 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Voltage Rating (DC)	7.00 V
Rise/Fall Time	50ns, 12ns
Input Voltage (DC)	1.40 V
Output Voltage	7.00 V
Output Current	0.05 A
Number of Circuits	2 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.4 V
Input Current	15 mA
Power Dissipation	60 mW
Data Rate	10.0 Mbps
Rise Time	50 ns
Isolation Voltage	2500 Vrms
Forward Current	30 mA
Input Current (Min)	50 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.75 V
Forward Current (Max)	30 mA
Fall Time	12 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	60 mW
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Length	9.91 mm
Size-Width	6.86 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
