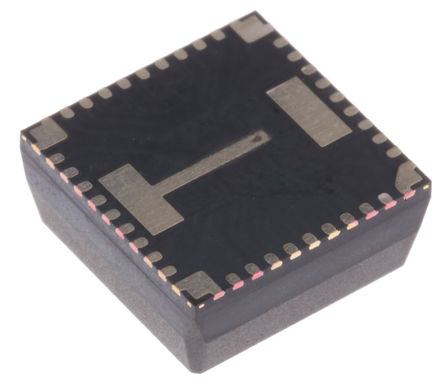

Image is for your reference only,please check specifications for details

LMZ31710RVQT - TI
Manufacturer:
TI
ManyChip's Part#:
MC1492726
Category:
DC to DC Converter
Package:
QFN-42
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMZ31710RVQT DC-DC POL Converter, Adjustable, Buck, 1.2MHz, 600mV to 5.5V out, 10A, BQFN-42
Stock Locations:
Availability:
732 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMZ31710RVQT is a SIMPLE SWITCHER® Power Module with current sharing that combines a 10A DC/DC converter with power MOSFETs, a shielded inductor and passives into a low profile. This total power solution allows as few as three external components and eliminates the loop compensation and magnetic part selection process. It is easy to solder onto a printed circuit board and allows a compact point-of-load design. It achieves greater than 95% efficiency and excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31710 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems.
Complete integrated power solution allows small footprint, low-profile design
Eco-mode/light load efficiency
Supports parallel operation for higher current
Synchronizes to an external clock
Adjustable slow-start
Output voltage sequencing/tracking
Power good output
Programmable undervoltage lockout
Overcurrent and over temperature protection
Pre-bias output start-up
Adjustable switching frequency
Provides 180° out-of-phase clock signal
Meets EN55022 class B emissions - Integrated shielded inductor
Wide-output voltage adjust - 0.6 to 5.5V with 1% reference accuracy
Green product and no Sb/Br

Show

LMZ31710RVQT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	42 Pin
Case/Package	QFN-42
Power Rating	55 W
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	10 A
Number of Positions	42 Position
Number of Regulated Outputs	1 Output
Switching Frequency	1.2 MHz
Topology	Buck
Input Voltage (Max)	17 V
Input Voltage (Min)	2.95 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	10 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.95V ~ 17V
	Show
Size-Length	10.15 mm
Size-Width	10.15 mm
Size-Height	4.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
