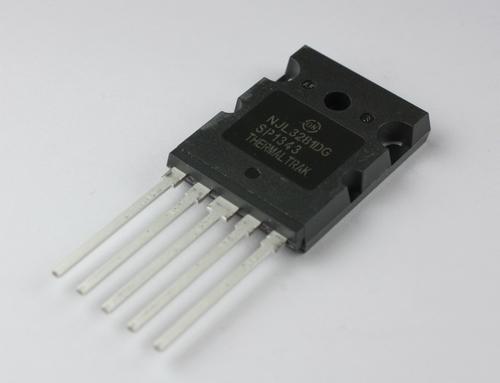

Image is for your reference only,please check specifications for details

Updated at 17/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Complementary ThermalTrak Transistors
The ThermalTrak family of devices has been designed to eliminate thermal equilibrium lag time and bias trimming in audio amplifier applications. They can also be used in other applications as transistor die protection devices.
Features
•Thermally Matched Bias Diode
•Instant Thermal Bias Tracking
•Absolute Thermal Integrity
•High Safe Operating Area
•Pb−Free Packages are Available
Applications
•High−End Consumer Audio Products
♦Home Amplifiers
♦Home Receivers
•Professional Audio Amplifiers
♦Theater and Stadium Sound Systems
♦Public Address Systems (PAs)

Show

NJL3281D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-264-5
Voltage Rating (DC)	260 V
Current Rating	25.0 A
Polarity	NPN
Power Dissipation	200 W
Gain Bandwidth Product	30 MHz
Breakdown Voltage (Collector to Emitter)	260 V
Continuous Collector Current	15A
hFE Min	75 @5A, 5V
Input Power (Max)	200 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	19.89 mm
Size-Width	4.89 mm
Size-Height	25.98 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
