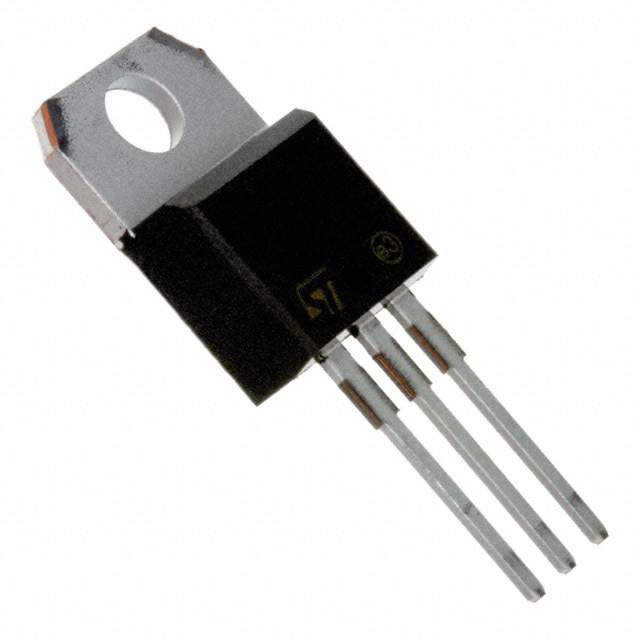

Image is for your reference only,please check specifications for details
- STPR1620CT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC104021062
-
Category:Diode Array, TVS Diode Array
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:Diode Switching 200V 16A 3Pin(3+Tab) TO-220AB Tube
-
Stock Locations:
-
Availability:638 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.24
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- Low cost dual center tap rectifier suited for Switched Mode Power Supplies and high
- frequency DC to DC converters. Packaged in D2PAK, I2PAK or TO-220AB, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
- FEATURES
- ■ SUITED FOR SMPS
- ■ LOW LOSSES
- ■ LOW FORWARD AND REVERSE RECOVERY TIME
- ■ HIGH SURGE CURRENT CAPABILITY
STPR1620CT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 200 V |
| Current Rating | 16.0 A |
| Forward Voltage | 990mV @8A |
| Reverse recovery time | 30 ns |
| Forward Current | 16 A |
| Maximum Forward Voltage (Max) | 990mV @8A |
| Forward Current (Max) | 16 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 65 ℃ |
| Junction Temperature | 150℃ (Max) |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 9.15 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
