Description

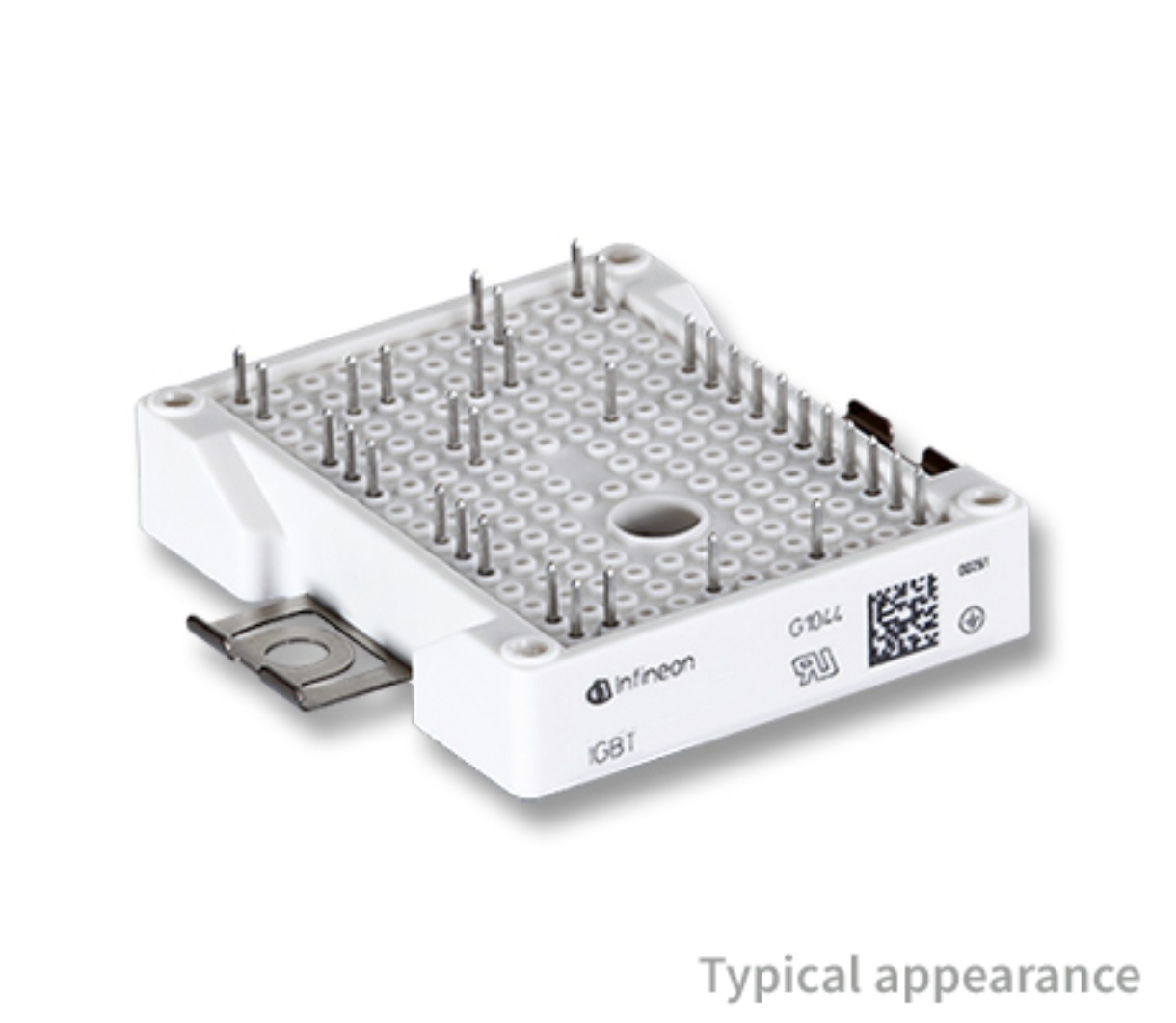

The FP25R12W2T4 is an EasyPIM™ 2B PIM IGBT Module with fast Trench/field-stop IGBT4, emitter controlled 4 diode and NTC.
High power density
Established easy module concept
Integrated temperature sensor available
Low stray inductance module design
Compact module concept
Configuration flexibility

Show

FP25R12W2T4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	23 Pin
Case/Package	AG-EASY2B-1
Number of Positions	23 Position
Polarity	N-Channel
Power Dissipation	175 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	56.7 mm
Size-Width	62.8 mm
Size-Height	12 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
