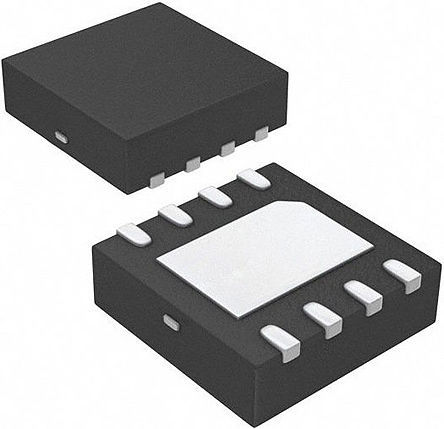

FAN3224TMPX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC85578303
Category:
FET Driver
Package:
MLP-8
Datasheet:
Datasheet 3D Model
Description:
Fairchild Semiconductor FAN3224TMPX, Dual MOSFET Power Driver, -5A, 5A Centre-Tapped Bridge, 4.5 → 18V
Stock Locations:
Availability:
1,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.83

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Turn on and off high power transistors by implementing this FAN3224TMPX power driver manufactured by Fairchild Semiconductor. This device has a maximum propagation delay time of 29 ns. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This gate driver has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V.

Show

FAN3224TMPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MLP-8
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	12ns, 9ns
Number of Outputs	2 Output
Rise Time	20 ns
Fall Time	17 ns
Fall Time (Max)	17 ns
Fall Time (Max)	20 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
