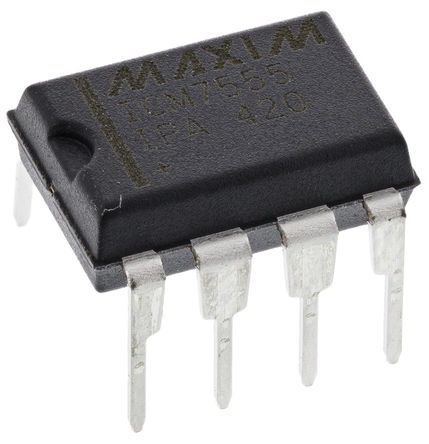

- ICM7555IPA+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC3892342
-
Category:Clock Chip, Timing IC
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:MAXIM INTEGRATED PRODUCTS ICM7555IPA+ Timer, Oscillator & Pulse Generator IC, CMOS RC Timer, 500kHz, 2V to 18V, DIP-8
-
Stock Locations:
-
Availability:70 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.65
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ICM7555IPA+ is a general purpose timer in 8 pin DIP package. This single general purpose RC timer is capable of generating accurate delay or frequency. The primary feature is an extremely low supply current, making it ideal for battery-powered system. Additional features include low threshold, trigger (complementary), reset (complementary) currents and improved performance at high frequency. This CMOS low power device offers significant performance advantage over the standard 555 bipolar timer. The low power consumption combined with virtually non- existent current spike during output transitions making timer the optional solution in many applications. It is used in pulse generator, precision timing, pulse width modulation, pulse position modulation, sequential timing and missing pulse detector.
- Supply voltage range is 2V to 18V
- Operating temperature range from -20°C to 85°C
- Improved 2nd source
- No crow-barring of supply during output transition
- Adjustable duty cycle
- TTL compatible
- Monolithic, low power CMOS design
- Threshold voltage of 0.66V
- Maximum oscillator frequency fmax is 500KHz(min)
ICM7555IPA+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Frequency | 500 kHz |
| Supply Voltage (DC) | 16.5V (max) |
| Current Rating | 250 A |
| Supply Current | 30 µA |
| Number of Positions | 8 Position |
| Power Dissipation | 200 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 200 mW |
| Supply Voltage | 2V ~ 16.5V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 9.525 mm |
| Size-Width | 15 mm |
| Size-Height | 3.302 mm |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
