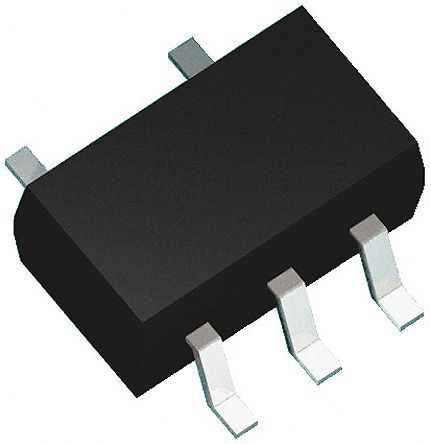

Image is for your reference only,please check specifications for details

NZF220DFT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC7813146
Category:
RFI Shielding
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
RC (Pi) EMI Filter 2nd Order Low Pass 2Channel R = 110Ω, C = 22pF 5-TSSOP, SC-70-5, SOT-353
Stock Locations:
Availability:
1,134 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

EMI Filter with ESD Protection
Features
---
|
2 EMI/RFI Bi-directional "Pi" Low-Pass Filters
ESD Protection Meets IEC61000-4-2
Diode Capacitance: 7 - 10 pF
AECQ101 Qualified and PPAP Capable SNZF220DFT1G
Low Zener Diode Leakage: 1 µA Maximum
Zener Breakdown Voltage; 6 - 8 Volts
**Benefits**
Designed to suppress EMI/RFI Noise in Systems Subjected to Electromagnetic Interference
Nominal Cutoff Frequency of 220 MHz
Small Package Size Minimizes Parasitic Inductance, Thus a More "Ideal" Low Pass Filtering Response
Pb-Free Package is Available
Zener/Resistor Line Capacitance: 22 +/-20% pF

Show

NZF220DFT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Operating Voltage	1.5 V
Capacitance	10 pF
Power Rating	14 W
Halogen Free Status	Halogen Free
Number of Channels	2 Channel
Number of Positions	5 Position
Power Dissipation	14 W
Shielding	No
Clamping Voltage	8 V
Test Frequency	220 MHz
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1.1 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
