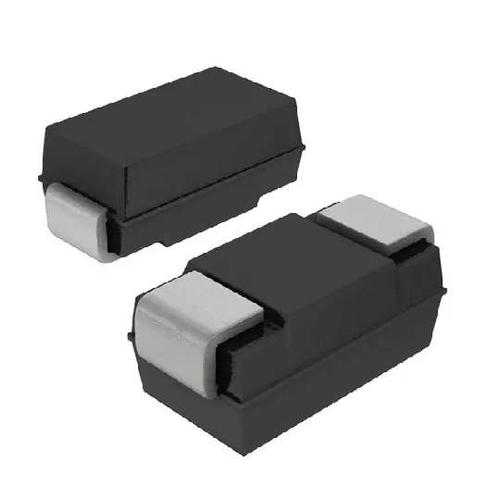

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RB068L100TE25 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-106-2
Forward Voltage	800mV @2A
Forward Current	2000 mA
Max Forward Surge Current (Ifsm)	60 A
Maximum Forward Voltage (Max)	800mV @2A
Forward Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Height	1.9 mm
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
