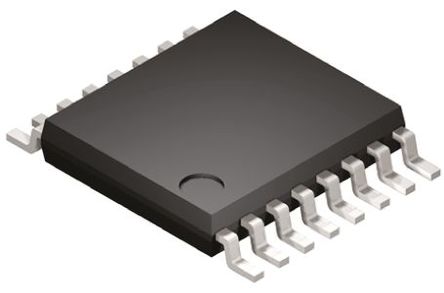

Image is for your reference only,please check specifications for details

ADS7830IPWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5740140
Category:
Analog to Digital, ADC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
8Bit, 8Channel Sampling A/D Converter with I2C Interface 16-TSSOP -40℃ to 85℃
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.83

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS7830IPWT is a 8-bit Analog-to-digital Converter (ADC) features a sample-and-hold amplifier and internal, asynchronous clock. It is a single-supply, low-power, 8-bit data acquisition device that features a serial I²C interface and a 8-channel multiplexer. The combination of an I²C serial, 2-wire interface and micropower consumption makes the ADC ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation.
No missing codes
Supports all 3 I²C modes - Standard, fast and high-speed modes
Green product and no Sb/Br

Show

ADS7830IPWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Supply Current	750 µA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	16 Position
Number of Bits	8 Bit
Power Dissipation	3.75 mW
Sample Rate	70 ksps
Power Consumption	0.75 mW
Number of ADCs	1 ADC
Number of Inputs	4, 8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5 mW
Number of Input Channels	8 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
Input Voltage	2.5 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
