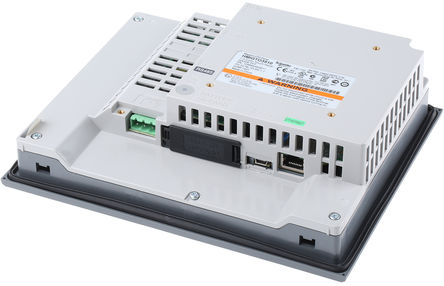

Image is for your reference only,please check specifications for details

HMIGTO3510 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC168645097
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC HMIGTO3510 Touch Screen, Advanced, Magelis GTO Series, TFT LCD Color, 800 x 480 Pixels, 7 ", 28.8VDC
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Magelis GTO — Advanced Panels with Optimised Features
* **Beautiful Screen**
\- TFT 65 K colors for all screen sizes to allow good monitor conditions for operators
\- LED backlight for the whole range enabling energy saving. Complete dimming functionality available for specific applications like Marine, or to reduce power consumption
\- Availability of a 7" wide display offering up to 40% more graphic space than standard 5" for equivalent price
* **Easy Connectivity **
\- Embedded Ethernet for all terminals with wide choice of web services (Webgate, Ftp server, Diag server) and 2 Serial lines for communications with devices on the machines
\- Up-to-date interfaces (USB 2.0, SD cards) to allow easy maintenance and good peripheral links
\- The 4 GB SD card allows large log files capability, and the new mini-USB port allows downloads with standard cable
* **Easy Installation/Operation **
\- Same cut-out than Magelis XBTGT range, for an easy substitution by keeping the same design of your machine
\- Minimum way for connectors location to offer a better cabling of the panels
\- Unique fast connection power plug for the whole range
\- Only 4 installation fasteners for the whole range
\- Addition of function keys on 3", 5" and 7" wide displays with good click feeling to allow space saving in visualization and simultaneous actions on buttons for safety
* **Easy Environment Adaptation**
\- Magelis GTO operating now up to 55°C for hot environment
\- Worldwide certifications including hazardous locations (ISA 1212, ATEX Cat 3 certificates) and Marine “Bridge and Deck” to allow installation in these specifics applications
\- Smart environmental covers accessory to protects against chemical and oil substances in machine tools environment
* **Availability of Rugged Panels for Specific Applications **
\- Stainless steel panels and conformal coating for applications in food & beverage or pharmaceutical industry
**BENEFITS**
Magelis GTO: the first optimized terminal that doesn"t compromise features and performances
* State of the art display
* Optimized communication
* Easy to install and sustainable offer
* Adapted to your environment
* Availability of stainless steel panel for food and beverage applications
**APPLICATIONS**
* Industry: compact machines, handling systems, food & beverage machines, pharmaceutical industry, etc

Show

HMIGTO3510 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Supply Voltage (DC)	19.2V (min)
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	0 ℃
Voltage Rating	24 VDC
Supply Voltage	24 VDC
Supply Voltage (Max)	28.8 VDC
Supply Voltage (Min)	19.2 VDC
	Show
Size-Length	204 mm
Size-Width	173 mm
Operating Temperature	0℃ ~ 50℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
